Scaffolding

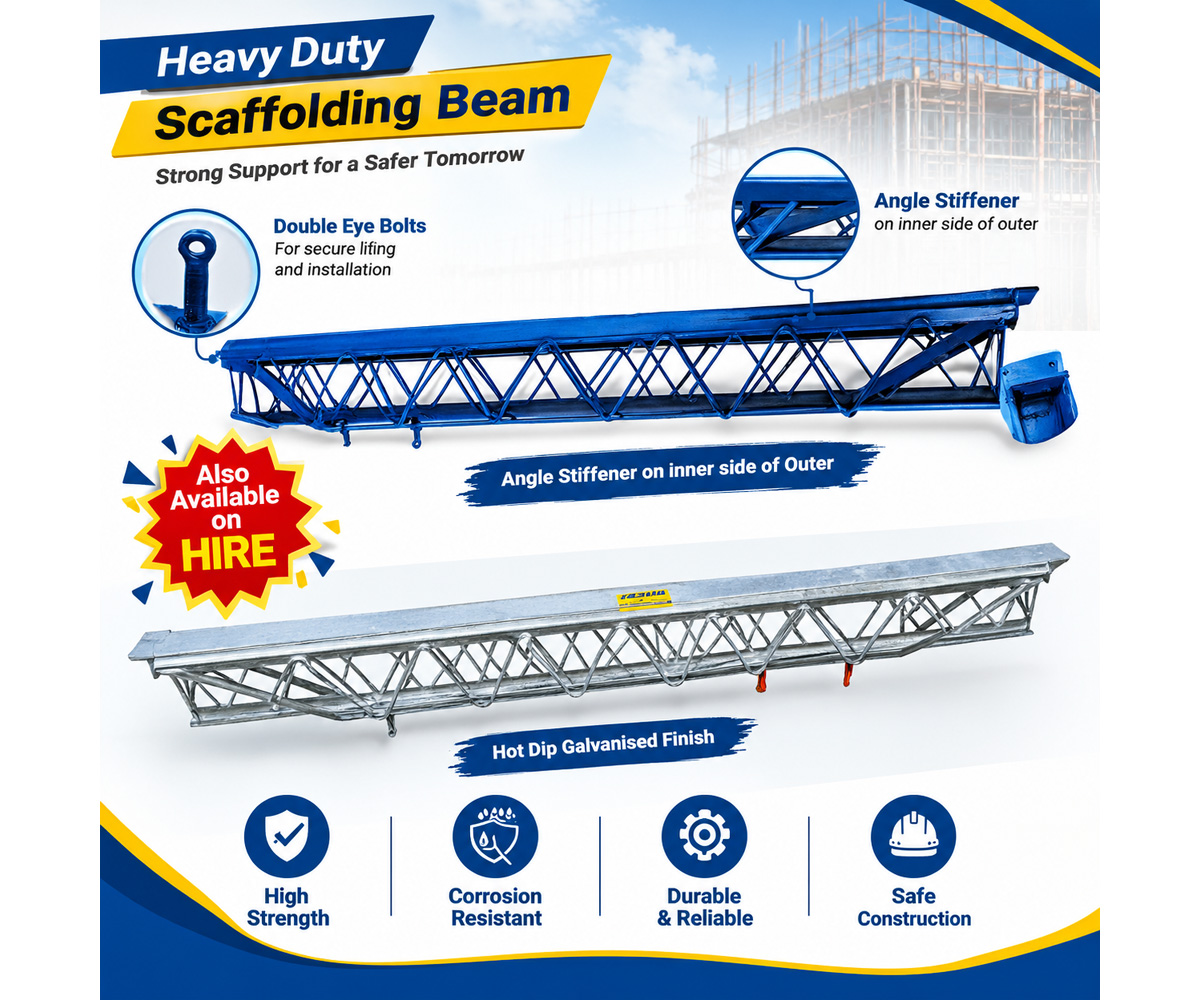

ACROSPAN
Manufacture scaffolding and formwork that is safe, reliable and built to last.
Aaditya Equipments
Adjustable Telescopic SPAN
Specifications - Assembled of two members that is Outer & Inner
Outer - Manufactured from 2mm HRC sheet (Section), 65 x 6mm MS Flat, 10mm Round Bar, 65x8mm Corner Angle and Double M20 Nut bolting provision. Extra stiffener of 35x5mm ISA is welded from Inside for more strength & durability.
Inner - Manufactured from 2mm HRC sheet (Section), 40x5mm 'T', 10mm Round Bar and 65x8mm Corner Angle
Painting - Complete Span is dip painted and oven dried
PRODUCT SPECIFICATION
Size and Load Table
| Range | Min | Max |
|---|---|---|
| ESO / ESI | 1750 | 2750 |
| SO / ESI | 2350 | 3450 |
| SO / SI | 2450 | 4150 |
| SO / LI | 3050 | 4750 |
| LO / SI | 3150 | 4950 |
| LO / LI | 3150 | 5550 |
Aaditya Equipments

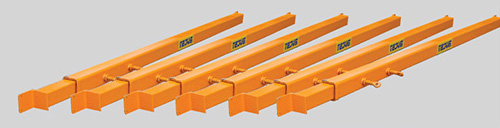

Box Type SPAN
Manufactured from sq tube, outer 50x50mm and Inner 40x40mm 3mm Thick
