Adjustable Column Clamps

Manufacture scaffolding and formwork that is safe, reliable and built to last.

Light weight, easy and quick to use system.
Easy column making in 18/21mm Board.
Assemble the column, nailing the 3-ply shuttering panels to form the column at the necessary size.

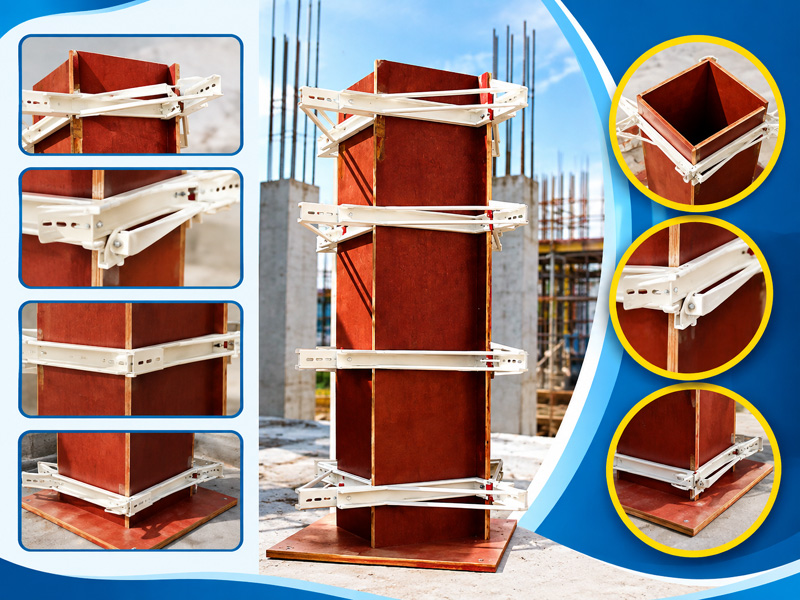

Place the column brackets as shown in the pictures. Fix the column brackets to the 3-ply panels using nails in the suitable holes.
Fix the column brackets with a hammer blow on the wedge.
Depending on the height of the concrete pouring, put the brackets around the column with the appropriate span.
Strut and plum using props engaged with upper column brackets.
Concrete pouring rate must not exceed 2.50 meter/hour of vertical filling.

Erection Steps

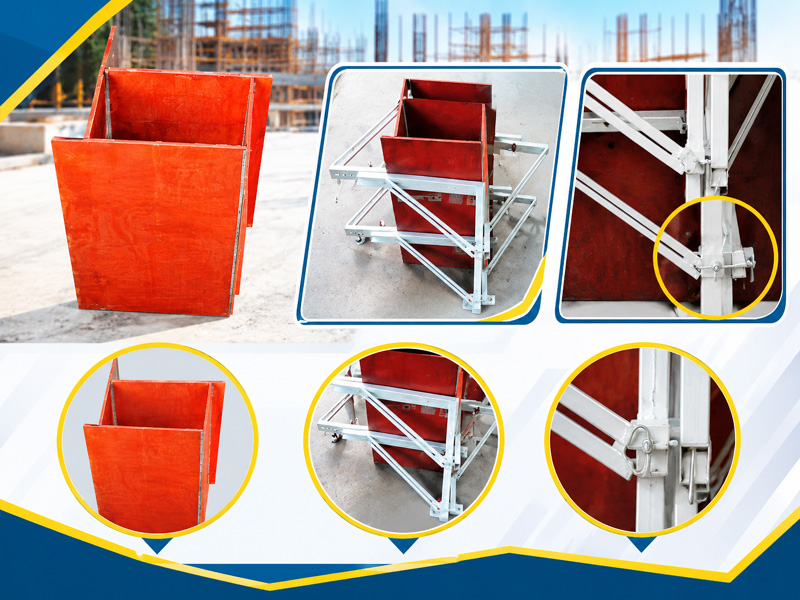

Place the column brackets with the right span

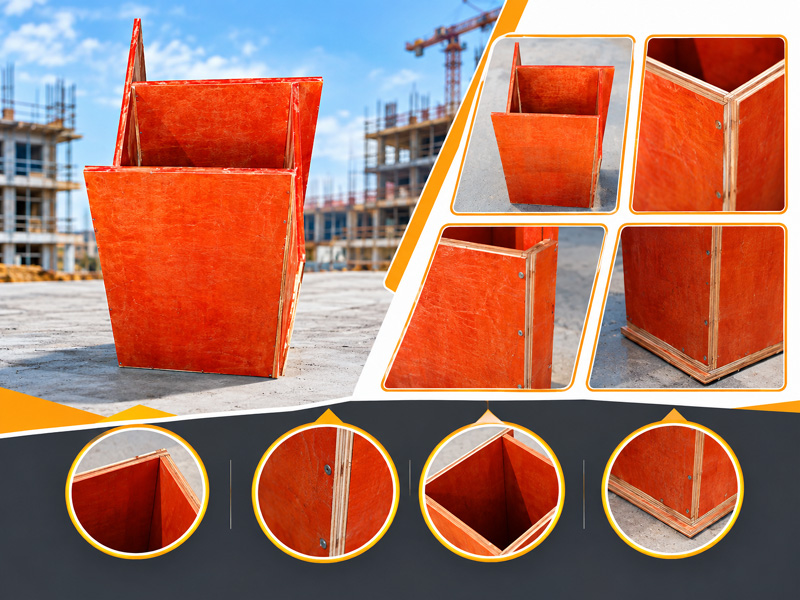

Assemble the column at the necessary size.

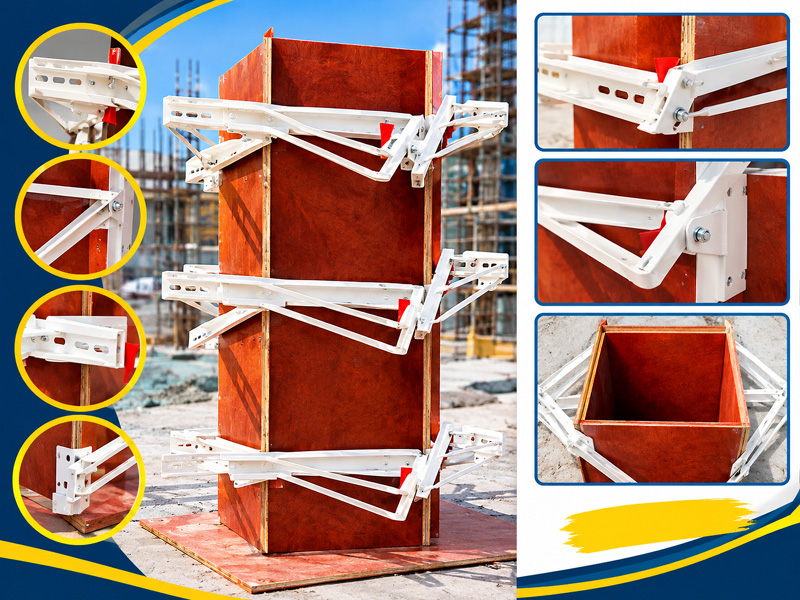

The column brackets are adjustable every 5 cm

No LOOSE Components
