Product - Solid wooden Formwork beam (Carico, Austria)
Lengths - 2,45 / 2,90 / 3,30 / 3,60 / 3,90 / 4,50 / 4,90 / 5,90
| Dimensions | H20 protect | Tolerances |
|---|---|---|
| Beam height (mm) | 200 | + / - 2mm |
| Chord height (mm) | 40 | - 1,5% |
| Chord width (mm) | 80 | - 1,5% |
| Web thickness (mm) | 30 | + / - 0,5mm |
Technical Specifications
| Technical specifications | H20 protect |
|---|---|
| Permissible modulus M (kNm) | 5,0 |
| Permissible shearing force Q (kN) | 11,0 |
| Section modulus¹ Wₓ (cm³) | 462 |
| Geometrical moment of inertia¹ Jₓ (cm⁴) | 4618 |

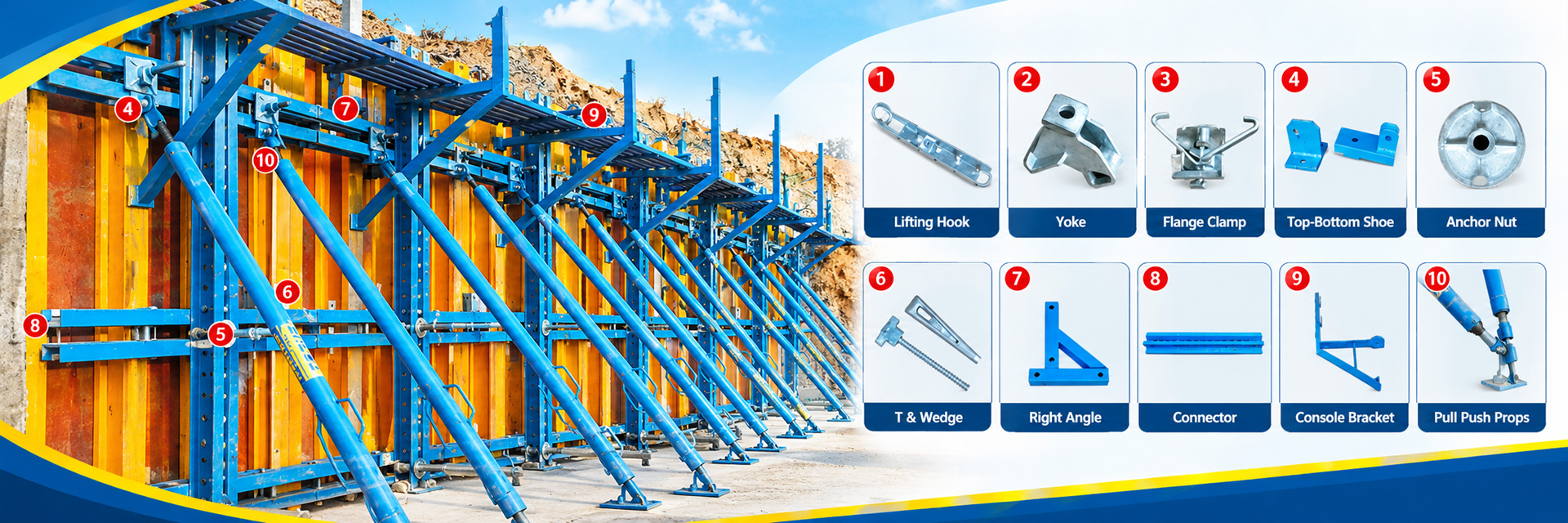

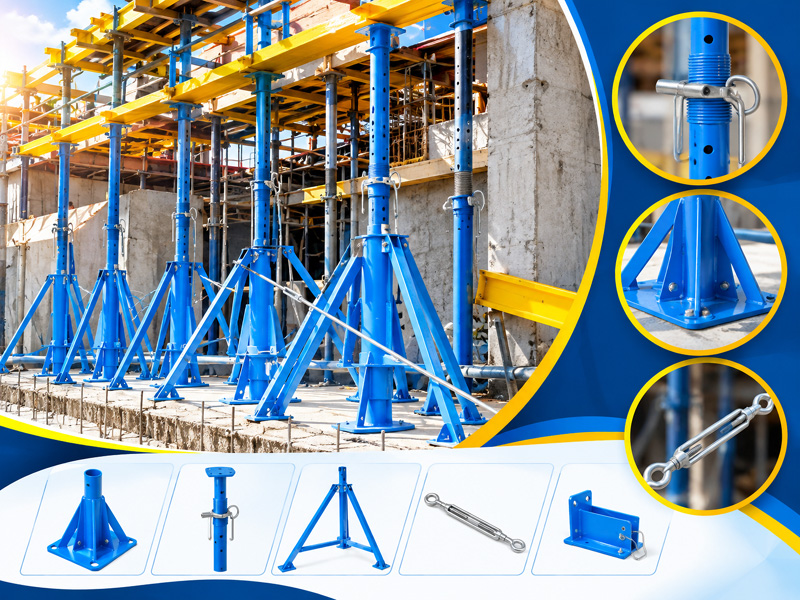

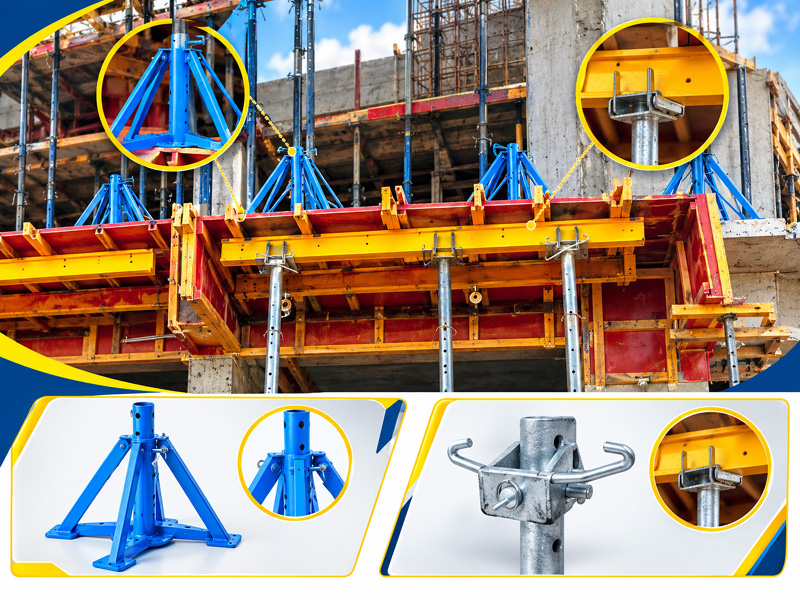

H-20 Pannels are very Extensively used for Slab form /Columns / Retaining walls. We manufacture complete rangeof H-20 Accessories as shown
| Description of H-20 Beams | |
|---|---|
| Chords | Made of carefully selected class S10 spruce wood according to DIN 4074 planed & chamfered with approx. 4 mm |
| Webs | 3-ply solid wood panel, laminated, with mainly vertical growth rings |
| Wood types | spruce / fir, permitted mixture of wood species |
| Glueing | 3-ply solid wood panel BFU 100, (AW 100) according to standard O-Norm B 3023 finger-joints between chords and webs |
| Wood moisture | approx. 12% |
| Weight | 5 kg / linear meter |
| Surface protection | waterproofed colour impregnation |
Quality-standard
Certification according to EN 13377 from CEN, European Committee for Standardization
Auditing agency
ZAG Laibach, National building and Civil engineering Institute, EEC Nr. 89/106

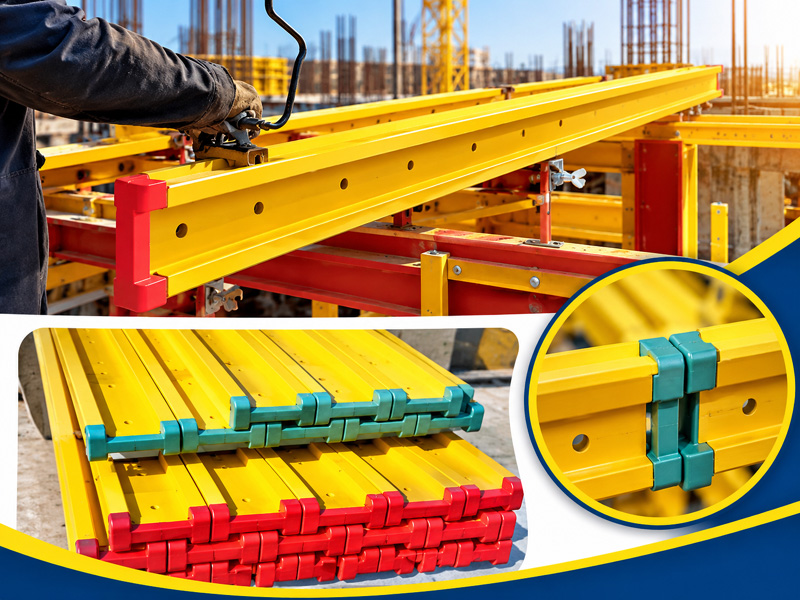

Advantages
Break-proofed, rounded full protection cap from special plastic to protect the beam ending from split-off
