Cuplock Scaffolding System

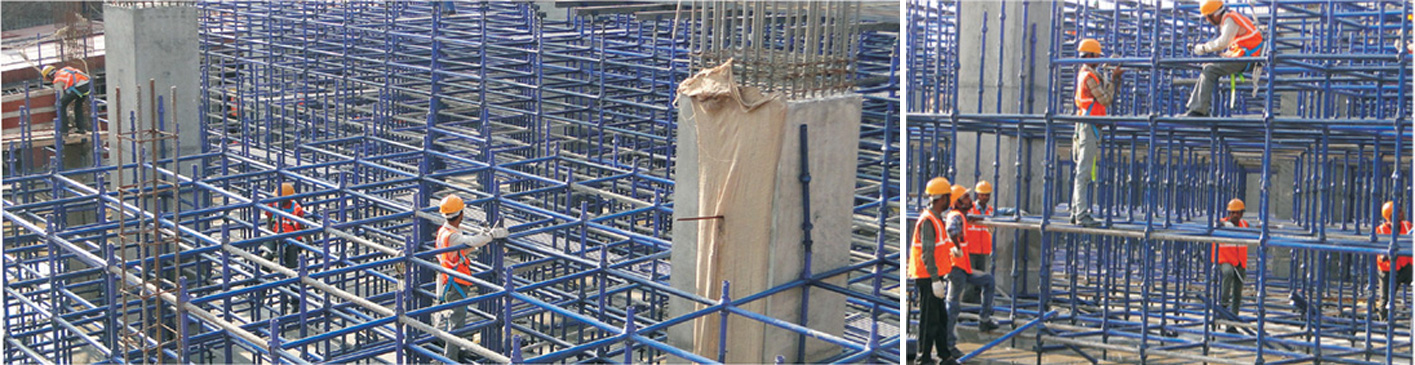

This is a multi purpose system which is used for plastering, supporting structures, for lift machine (Hoist) etc. This system can be erected for straight, circular and also curved structures. This system has horizontal and vertical members. Horizontal members is locked to vertical members by cups provided on it. The cups on the vertical members are of malleable cast iron and pipes used are of 40 NB pipe, forged blades are welded on both corners.
Horizontals

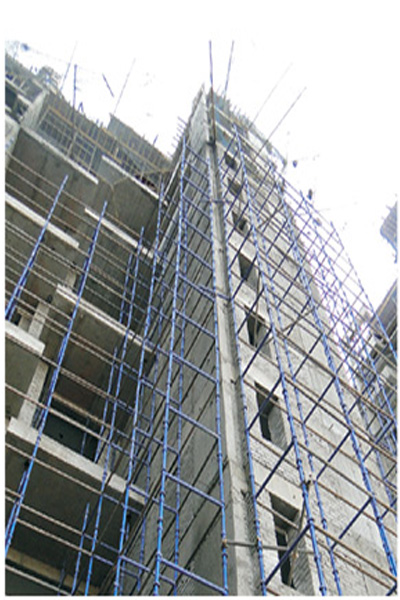

Horizontals have identical forged blade ends with minimum of projection to avoid damage. Each component locates in the cup joints on the vertical.
Specification
| Product Code | Length c/c | Weight |
|---|---|---|
| T905 | 2.0 m | 6.8 kg |
| T906 | 1.2 m | 4.0 kg |
| T907 | 1.5 m | 5.0 kg |
Note : Pipe as per BS 4360 N.B.M.S.Pipe OD 48.3 mm, Wall thickness 2.9 mm, Weight 3.25 Kg/m forged blade grade '2' on other side. As per requirement Horizontals are tailor made.
Spigots : 200 / 300 mm long for making vertical connections.
These spigots are drilled with Two Holes to receive locking pins / Nut Bolting.
Specification
| Product Code | Length c/c | Weight |
|---|---|---|
| T914 | 0.3 m | 0.8 kg |
Note : 3 mm thick 38 OD pipe.
Verticals

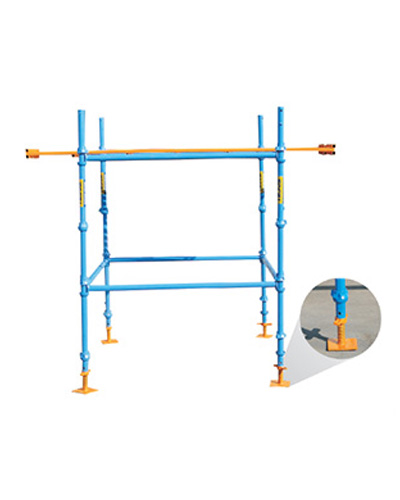

Verticals are provided in four basic sizes with cup joints welded at 500 mm, intervals. The captive top cups are of malleable casting to endure rough site handling, and welded bottom cups are pressed from high-quality steel.
Specification
| Product Code | Length | Weight |
|---|---|---|
| T901 | 3.0 m | 14.97 kg |
| T902 | 2.5 m | 12.97 kg |
| T903 | 2.0 m | 10.00 kg |
| T901 | 1.5 m | 7.4 kg |
Note : Pipe as per BS 4360 N.B.M.S. Pipe OD 48.3 mm, Wall thickness 2.9 mm, Weight 3.25 Kg/m forged blade grade '2' on other side. As per requirement Verticals are tailor made.
Adjustable Stirrup Head

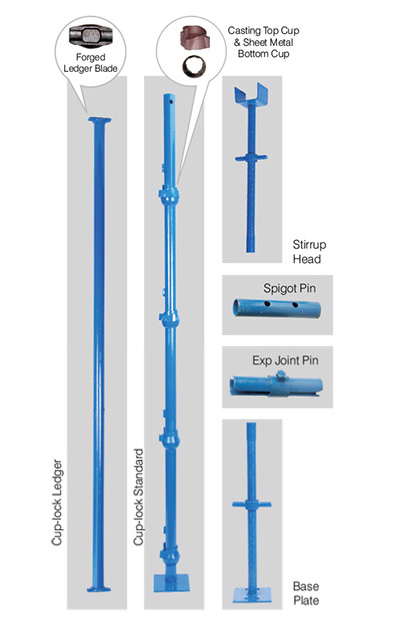

Adjustable Stirrup Head / Base Plates / Universal Jack
These are manufactured by process of Thread Rolling either on solid bar 32/36 mm or Hollow pipe 38mm Dia 4mm Thick.
These are available with a 'U' head 70x110x70 mm OR Base Plate 150x150x6mm OR also available without any attachment ie, universal Jack.
These are available in different length 350/450/650 long or can also be made to order as required. These are used for final height adjustment of scaffolding at top or bottom.
Top Cup - Malleable cast iron 3 lug./ 4 lug.
Bottom Cup - Made out of 4 mm press metal.
Ledger Blade - Manufactured of forged special steel
