H- FRAME SCAFFOLDING
Manufacture scaffolding and formwork that is safe, reliable and built to last.
H-Frames with Monkey Ladder
Ideal as access scaffolding and support centering. Consists of welded frames with two verticals with sockets welded to them & two 40 N.B. horizontals. Frames manufactured in heights of 2000, 1250 and 1000 mm and width 1800mm, 12500mm & 1000mm.
Scissor type cross bracing secured to frames through the pins welded to frames and locked in position by gravity locks.
Cross bracings manufactured are of heavy duty angles.
Types of Frames
Walk Thru, Ladder type and other frames also available in all specification. These are sturdy welded frames with two verticals and two horizontals connections done by scissor cross braces through welded pins and locked by spring clips/Gravity lock pins.

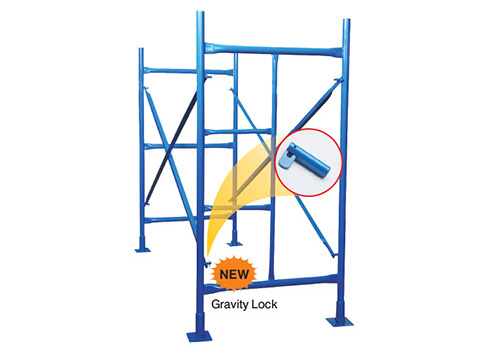

Manufactured as per International Standards, with latest Gravity Locks & Co2 Welding

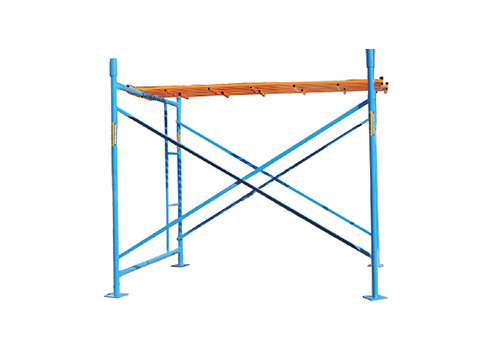

H-Frame for Tower Hoist / Lift Machine
Manufactured from 40/32 NB tubes specification followed are standard as per the winch of the hoist. Size 2000 mm height and 2000 mm width, ladder is given as per order. These H-Frames come in set of 40/30 m height. Heavy duty angular cross bracing are made to maintain distance of 2000 mm between two frames.
Cross Bracing
Heavy Duty Cross Bracings made from ISA 35 x 35 x 4mm / 40 x 40 x 4mm Corners are pressed on Hydraulic Power Press, also Corners are Round Punched for Safe Handling without any injury as Sharp Corners may cause injury to Labour while Climbing or Assembly of Frames. Cross Bracings are riveted at Centre for more Rigidness & Strength.
( IMP Note - Avoid using Pipe Cross Bracing )
H-Frames with Zig Zag Ladder
