PLYFORM® is a latest technology in which plywood is used in combination with special steel profile section Frame. This system is very extensively used in major Countries throughout Asia & Europe. Plyform Pannels are lighter in weight as compared to regular MS Wallform System.
In shuttering plywood is always preferred in comparison to MS Plate due to a superior finish & MS Angle Plate are preferred due to its long life & durability . So Plyform is a combination of both.

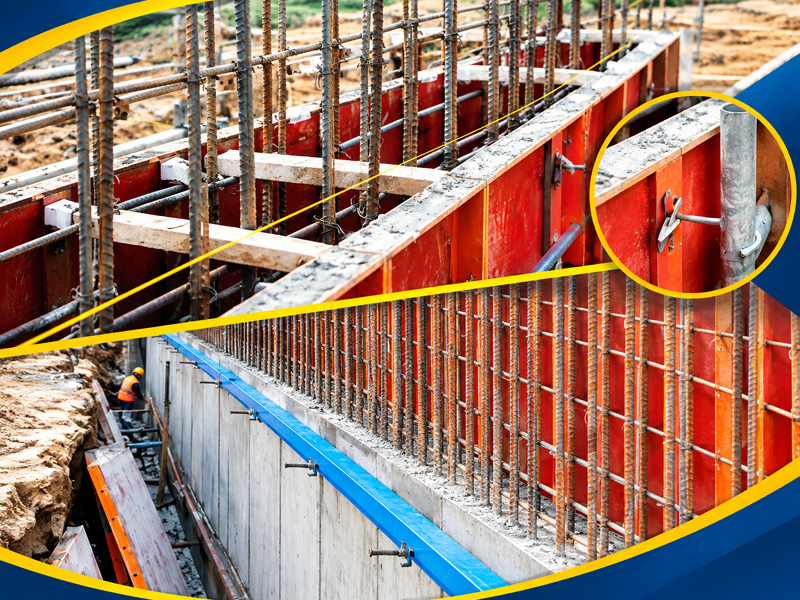

Plyform is a very versatile system & can be used for Column, Retaining Walls, Lift duct etc. Plyform is much more economical in comparision to conventional MS Wallform & also Aluminum Formwork

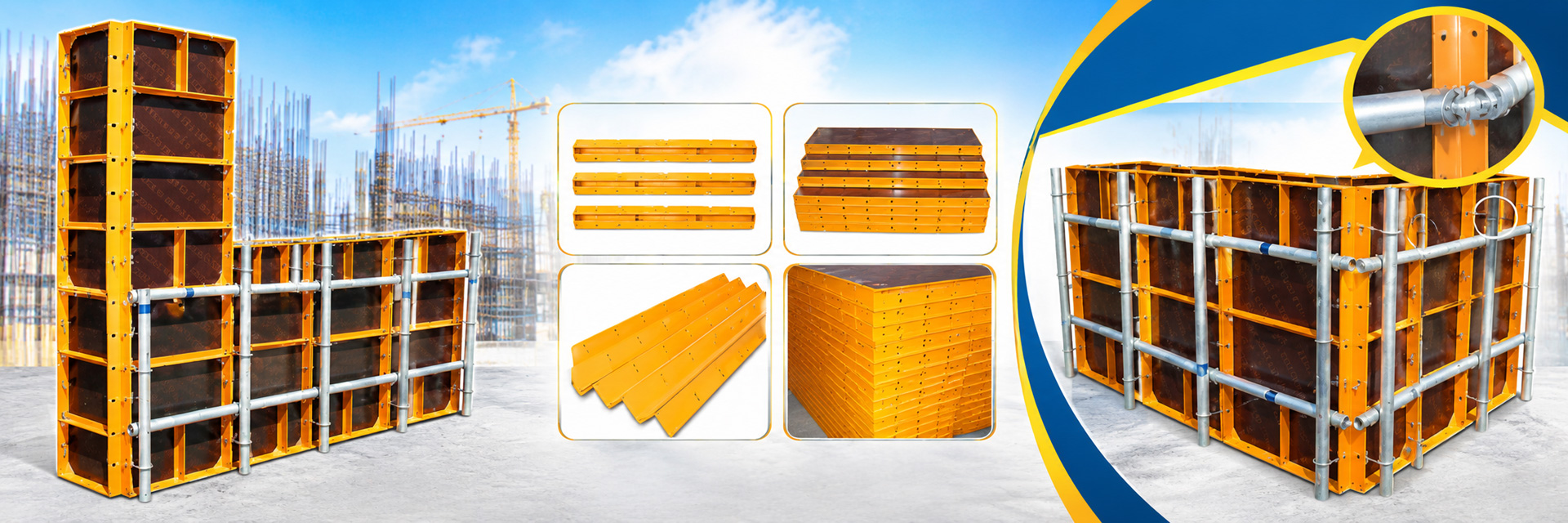

Pannels
Plyform Frame is made from special steel section which is light in weight & is made to order. 12mm good Quality plywood is riveted using Aluminum Rivet. Fixing of Plywood to pannel is optional can also be fixed on site by the contractor.
Corner Angle : Right Angle corners are made to order if used in inner side of Retaining Wall & MS Slotted Angle is used for connecting Outer Pannels. Corner Angle are 65 x 6mm (Slotted).
Locking Pins : These are used forinterlocking two pannels
Ties : Tie Pattis are substitute to Tie Rods in Plyform Pannels. Ties are manufactured as per Column, Size or as per thickness of retaining wall.
Watter Stopper : (Plastic cap / cone) usedin retaining structured to avoid holesthrough the structure while using Tierod Theholes cause water leakage problems
J Hooks : Used to clamp 40NB Tube for support from outer side of the pannel in order to maintain proper line level of Shuttering.
